Editing Assembly Overlays, Keys, and Assembly Items

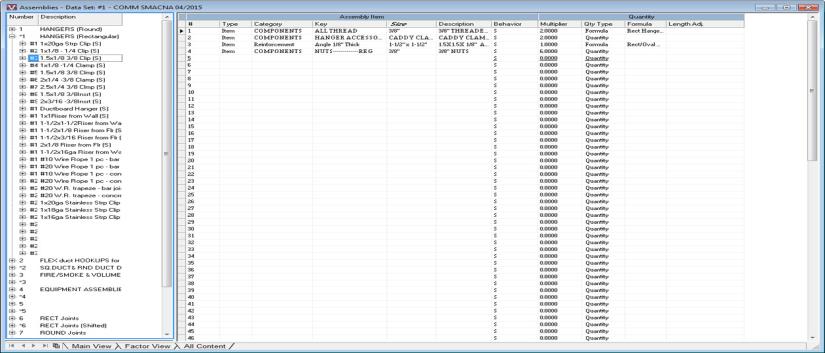

A sample Assemblies display is shown in the image below. In the example, the for HANGERS has been selected so that the Keys are displayed.



This display consists of two sections: Assembly Overlays/Keys on the left and Assembly Items on the right.

When you create an Estimate, this file is empty. You must build your own Estimate Assembly.
The default view of Assemblies includes a window under the Assembly keys that will display a picture of a selected item if possible.

To edit Assembly elements, select the line you want to edit, then right-click and choose the Edit option.  The window that appears will depend on the element chosen:
