Assembly Overlays

Assembly Overlays are the first layer of organization for Assemblies.  Each Assembly Overlay can contain multiple Assembly Keys.  They can be found on the left side of the Assemblies window.

ClosedSee example:

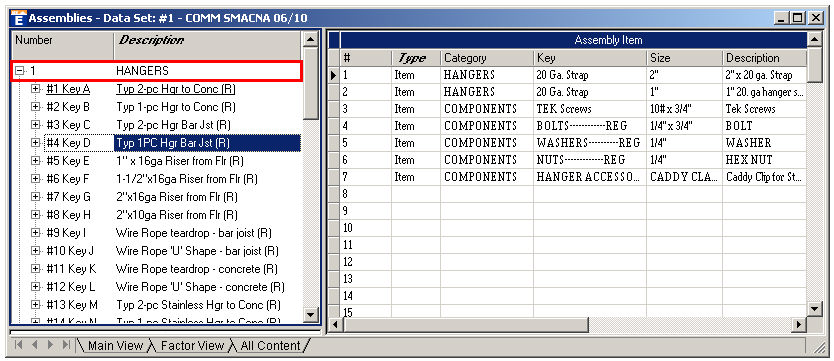

This example has the HANGERS Assembly Overlay highlighted:

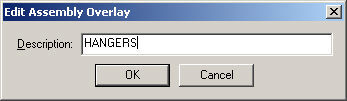

When you Edit an Assembly Overlay, the following window appears:

Description:  You can change the Overlay's name using this field.  This is the only part of an Overlay that you can edit.

If you are adding an Assembly, the Edit field is blank when first accessed.
