for both the Design Specification as well as the Design Component have
been selected so that the Sub-Components are displayed.A Design Specification consists of an ID and Name and is comprised of components that describe exactly what the Specification will do in Takeoff. Upon accessing Design Specifications, the file displays in a window with a menu Bar and tool bar, and the Specifications file showing the sequence number, type, ID, and description of the Specifications. Figure 1 is an example showing sequence number 2 selected.

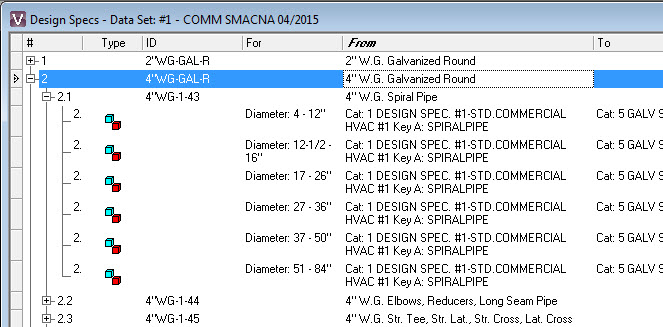

A sample Design Specifications display is shown in
Figure 1. In the example, the
for both the Design Specification as well as the Design Component have
been selected so that the Sub-Components are displayed.
Figure 1
To add or edit in the Design Specifications window, select the line you want to edit and right-click to see the options.
See one of the topics below for editing explanations:
Editing a Design Specification
Adding or Editing a Specification Group
Adding or Editing Specifications Components
