This Takeoff Tools Panel tab contains tools for drawing and selecting annotations. The Drawing Tools panel is updated when changes are made in Digital Takeoff System Preferences.
You can Copy/ Pasteannotations linked with an associated takeoff. Copy/Paste works between sections and sheets. While in Digital Takeoff, you can copy/paste by using the Edit menu, by right-clicking or by using the hot keys (CTRL-C / CTRL-V). If the annotations are linked to Takeoff, the linked items will be copied and updated to takeoff.
Select Count Symbol: This section allows you to select the symbol you wish to use when taking off Count Items. The currently selected symbol will be displayed as the Active Symbol.

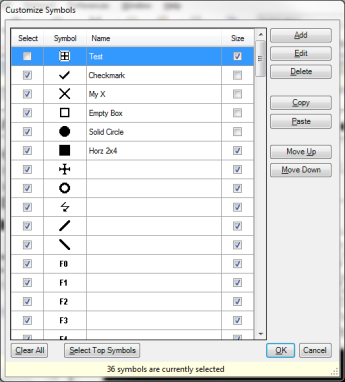

Click Edit Symbols or double-click the Active Symbol to open the Customize Symbols window, where you can choose which symbols appear on the Drawing Tools panel.
To select the symbols you wish to use, either check or un-check the Select box to the left of each symbol. You must have 36 of the available symbols selected for use before you can exit the window. These selected symbols will be visible in the palette as your count symbols.
Check the Size box to the right of the symbol name if you want the symbol to retain the size of the annotation across all sheets. If the box is not checked, then the annotation will use the default size of all annotations on the sheet.
Select Add to create a new symbol.
To edit a symbol, highlight the item and select Edit.
To delete a symbol, highlight the item and select Delete.
Use the Copy and Paste functions to make additional copies of symbols, which you can then edit, rename, etc.
Use Move Up and Move Down functions to reorder the list of symbols. You can also drag and drop symbols to reorder them.
Select Top Symbols to select the first 36 symbols in the list of symbols.
Clear All removes the selected check marks from all symbols in the list.
On the Add Symbol (or Edit Symbol) dialog, use the mouse to "draw" with the cursor to fill in blocks to create, or edit, your symbol. The left mouse button will draw pixels, and the right-mouse button will erase pixels. You can also hold either mouse button down and drag the mouse around to draw or erase multiple pixels.
|
|
|
Select
OK to save. The updated symbol
is added to the Select Symbol list.
Current Takeoff Item Color: This option sets the color that will be used to display annotations after they are taken off Standard Takeoff. The current color is shown, you can change the current color by clicking on the colored square and selecting a new color from the Color window.
Transparency: You can set the transparency level of the annotations so that you can see the actual drawings when annotations are on top of them. The range for transparency goes from 0 (not transparent) to 75% (very transparent).
Select Line Style/Thickness: These options allow you to select the marker color and thickness.
Select Marker Color/Thickness: These
options allow you to select the marker color and thickness of your annotation
lines.
NOTE: When you select Marker Color/Thickness,
Marker becomes the active tool.
Area Color: This option allows
you to select the area color used to highlight areas you are selecting
on the current drawing. The segment lengths for each side of the area
are measured as drawn. The last segment also displays the total area.
NOTES:
When you select or change the Area Color, Area becomes the active tool.
Segment lengths only display if the preference is selected in System Preferences > Settings > Display line segment lengths.
Active Takeoff Layer: The Layer which is currently being applied to the Sheet image. For more information see Setting the Active Layer.
Using this option will highlight all of the annotations
grouped with the currently selected annotation in the Main window. For
example, if you have a group of 5 Count annotations and have 1 of them
selected, using the Show Group button will highlight the remaining 4.
This option will update the selected group of annotations
with the current annotation color and style setting (if different).
NOTE: Drop and Home Run symbols:
If a Drop or Home Run symbol is rolled up, then the "hidden" annotations will NOT be updated. You must first "Show Components" and then update them.
If a Drop or Home Run symbol is not rolled up, then the Drop symbol will not update.
The Overview Pane is also displayed on the Drawing Tools tab.
