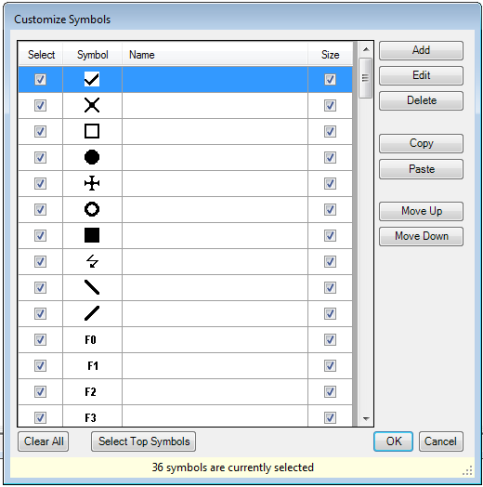

This window allows you to customize which annotation symbols appear on the Drawing Tools panel. To access the Customize Symbols window, double-click the Active Symbol box.
To select the symbols you wish to use, either check or de-select the Select box by each symbol. You must have 36 of the available symbols selected for use before you can exit the window.
To select the symbols you wish to use, either check or un-check the Select box to the left of each symbol. You must have 36 of the available symbols selected for use before you can exit the window. These selected symbols will be visible in the palette as your count symbols.
Select Add to create a new symbol.
To edit a symbol, highlight the item and select Edit.
To delete a symbol, highlight the item and select Delete.

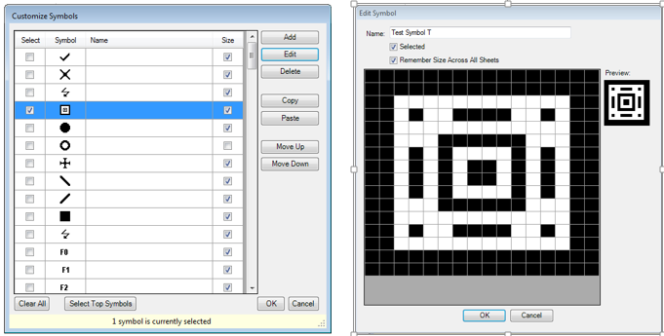

On the Add Symbol (or Edit Symbol) dialog, use the mouse to "draw" with the cursor to fill in blocks to create, or edit, your symbol. The left mouse button will draw pixels, and the right-mouse button will erase pixels. You can also hold either mouse button down and drag the mouse around to draw or erase multiple pixels.
Enter a name for the symbol.
Select:
Selected: When checked, the symbol is added to the Digital Takeoff Tools Palette
Remember Size Across All Sheets: when checked, the symbol's current size will be used across all sheets and jobs.
Select OK to save. The new symbol is added to the Select Symbol list.
Clear All: This option will deselect every symbol in the window.
Select Top Symbols: This option will set the currently selected 36 symbols as your default list. In the future, those symbols will be use whenever a new Job is created.
OK: This option will apply the changes made to your symbols list, updating the Drawing Tools panel with your choices (must have 36 symbols selected).
Cancel: Returns you to the Drawing Tools panel while retaining the original settings.
