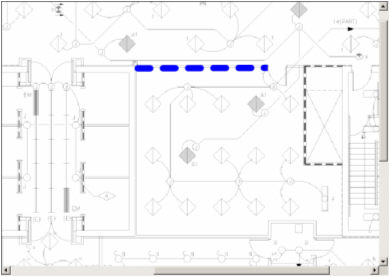

This Digital Takeoff tool allows you to draw a line on the takeoff image. The thickness and consistency of the line can be adjusted using the Toolbox panel in Digital Takeoff.
If you have not specified a Drop Length on the toolbar, you will be prompted to enter the value.
You can use Drop & Continue from the right click menu to add the drop and two elbows and continue with your measured line.
If you place a check mark in the AUTO box by left clicking, this will allow for completely filling in the line (Duct or Pipe) with the chosen color. This overrides the thickness chosen.
Note: Deleting the Standard Takeoff item will also delete its corresponding Digital Takeoff annotation, provided that Digital Takeoff is connected.
