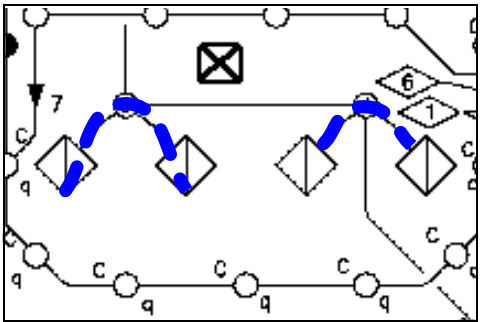

The Curved Line tool allows you to draw lines that curve around an object. To use this tool, left-click at the beginning of the line and then click again at the point you wish the line arc to peak. Next, drag the cursor until the curved line is how you want it to be and click again. As with the other Line tools, the thickness and consistency of the line can be adjusted using the Takeoff Tools panel in Digital Takeoff.
If you have not specified a Drop Length on the toolbar, you will be prompted to enter the value.
You can use Drop & Continue from the right click menu to add the drop and two elbows and continue with your measured line.
Note: Deleting the Standard Takeoff item will also delete its corresponding Digital Takeoff annotation, provided that Digital Takeoff is connected.
